Sakselifter og arbeidsplattformer

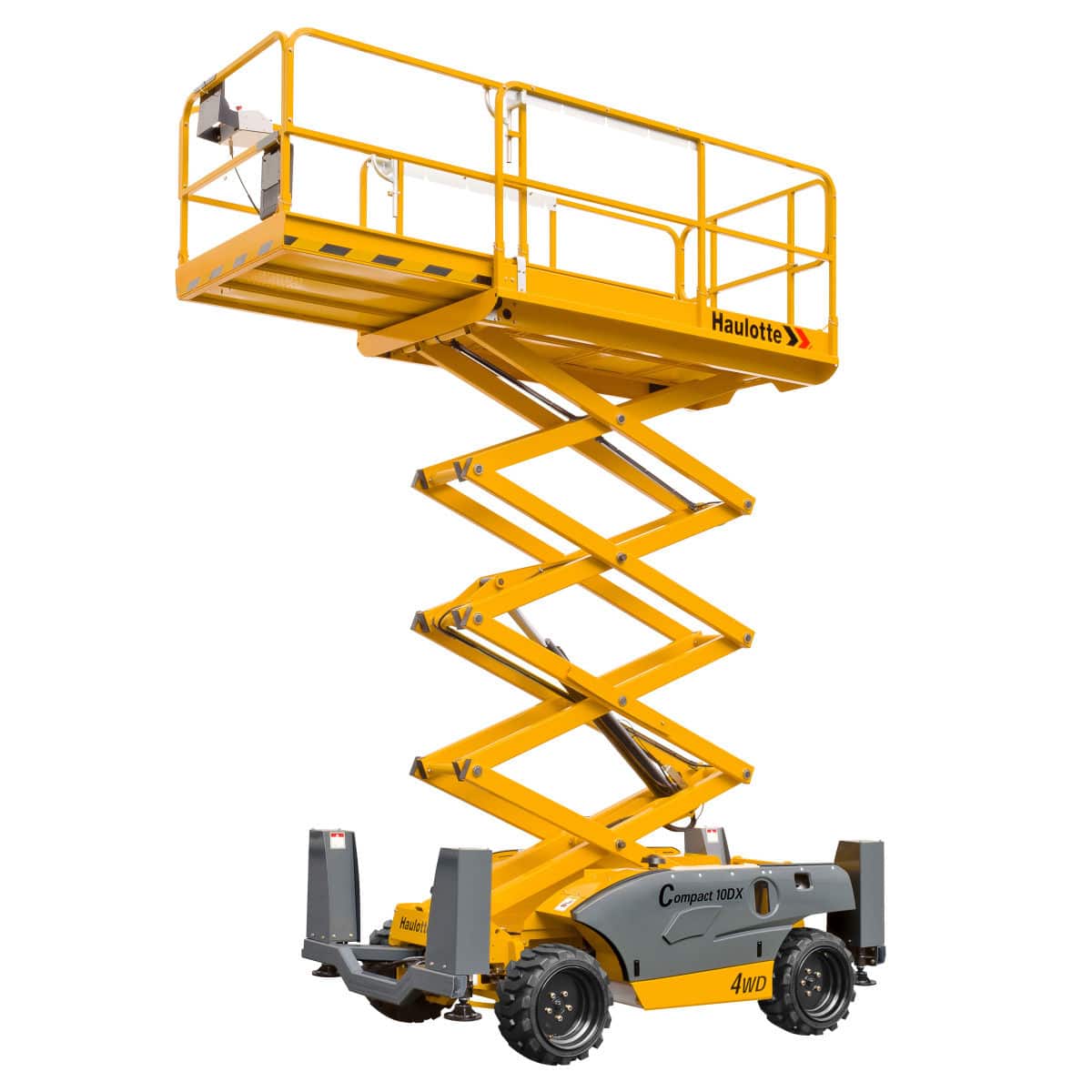

Compact DX 12, Sakselift
The machines will be fitted with a new Kubota engine which complies with the new Tier IV standard.
The new engine gives a significant reduction in noise and also reduces fuel consumption (-5% compared to the current engine) and emissions.
The new machines also have excellent rough terrain capability. The four-wheel drive, ground clearance of 27cm and automatic hydraulic differential lock enable our machines to climb steep slopes and work productively on the most uneven ground.
ARBEIDSHØYDE 12,15 m
STIGNINGSGRAD 40 %
PLATTFORMHØYDE 10,15 m
PLATTFORM L X B 3,85×1,54 m
UTSKYT 1,45×1,20 m
MAKS KURVLAST 450 kg | 250 kg på utskyv
LENGDE 2,65 m
BREDDE 1,80 m
HØYDE 2,54 m
VEKT 3.830 kg
